 New Vessel Design: Coastal Tanker "Marine Unity"

MARINE UNITY IMG 1

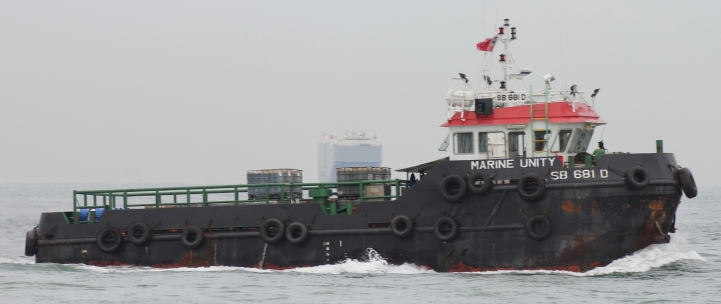

Image Caption: Coastal Tanker "Marine Unity" designed by GB Marine

The vessel "Marine Unity" is a coastal oil tanker designed by GB Marine. The vessel has been designed for carrying bunkering fuel to vessels offshore. The vessel design features facilitates it being able to operate within shallow waters by the coast and to transport and offload bunker fuel rapidly and efficiently. The primary use of this type of coastal oil tanker is to supply bunker fuel to larger vessels located further offshore who are unable to approach the coast due to shallow waters.

General Specifications
Designer : GB Marine
Vessel Type : Coastal Oil Tanker
Speed : 9 Knots

Principle Characteristics
Length Overall :   24.00 m
Length B. P. :   22.20 m
Breadth Moulded :     7.00 m
Depth Moulded :     3.50 m
Draft :     2.50 m
Deadweight :     200 MT
Complement :   8 Persons

Deck and Mission Equipment
Main Engine : 400 BHP @ 1800 RPM
Harbour Generators : 20KW / 50 Hz. @ 1500 RPM 3 DIA
Diesel Generator Set : 60KW /50 Hz. @ 1500 RPM 3 DIA
Deck Equipment Anchors : Bow Stockless Anchors x 2
Tank Capacity
Fresh Water Tank (P & S) : 2 x 6 m3
Fuel Oil Tank (P & S) : 2 x 10 m3
Fuel Oil Tank (P & S) : 2 x 33 m3
Flash Point : Above 60o C.
