 New Vessel Design: Coastal Oil Tanker "Marine Vigilance"

MARINE VIGILANCE IMG 1

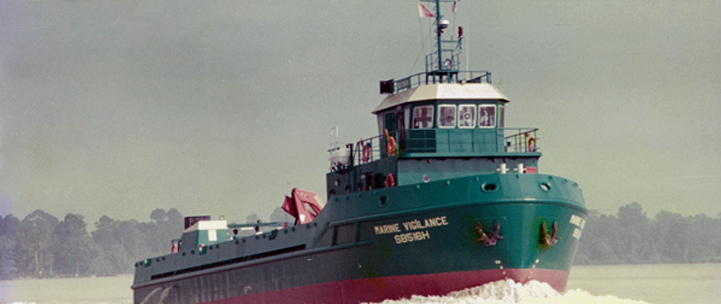

 Image Caption: Coastal Oil Tanker "Marine Vigilance" Designed by GB Marine

The vessel "Marine Vigilance" is a coastal oil tanker designed by GB Marine. The vessel has been designed for carrying bunkering fuel to vessels offshore. The vessel design features facilitates it being able to operate within shallow waters by the coast and to transport and offload bunker fuel efficiently. The primary use of this type of coastal oil tanker is to supply bunker fuel to larger vessels located further offshore who are unable to approach the coast due to shallow waters.



General Specifications
Designer : GB Marine
Vessel Type : Coastal Oil Tanker
Speed : 10 Knots

Principle Characteristics
Length Overall :   39.50 m
Length B. P. :   37.50 m
Breadth Moulded :   10.00 m
Depth Moulded :     4.20 m
Draft :     3.00 m
Deadweight :     599 MT
Complement :   10 Persons

Mission Equipment
Main Engine : 571PB @ 1800 RPM
Anchor Windlass : 1 x 3 Ton at 10M/min, electric hydraulic anchor windlass
Cargo Pump Capacity 1 :  m3
Cargo Pump Capacity 2 :  m3
Crane  : 1 x 0.6T SWL@ 15m radius telescopic type
