New Vessel Design: Coastal Tanker "Translub"

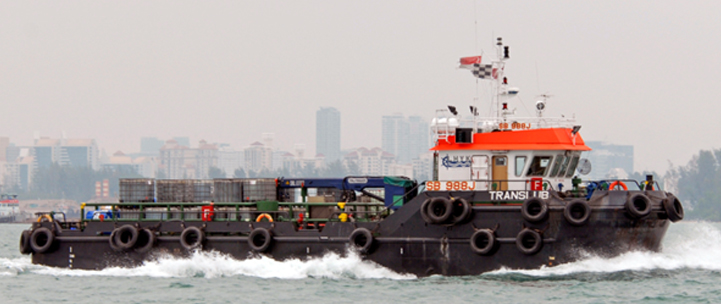

Image Caption: Coastal Tanker "Translub" designed by GB Marine. Photo Credit: Martin Klingsick; Source: shipspotting.com
The vessel "Translub" is a coastal oil tanker designed by GB Marine. The vessel has been designed for carrying bunkering fuel to vessels offshore. The vessel design features facilitates it being able to operate within shallow waters by the coast and to transport and offload bunker fuel rapidly and efficiently. The primary use of this type of coastal oil tanker is to supply bunker fuel to larger vessels located further offshore who are unable to approach the coast due to shallow waters.
| General Specifications | |
| Designer | : GB Marine |
| Vessel Type | : Coastal Oil Tanker |
| Speed | : 9 Knots |
| Principle Characteristics | |
| Length Overall | : 26.00 m |
| Length B. P. | : 24.20 m |
| Breadth Moulded | : 7.50 m |
| Depth Moulded | : 3.80 m |
| Draft | : 2.50 m |
| Deadweight | : 191 MT |
| Complement | : 8 Persons |
| Deck and Mission Equipment | |
| Main Engine | : 400 BHP @ 1800 RPM |
| Harbour Generators | : 20KW / 50 Hz. @ 1500 RPM 3 DIA |
| Diesel Generator Set | : 60KW /50 Hz. @ 1500 RPM 3 DIA |
| Deck Equipment Anchors | : Bow Stockless Anchors x 2 |
| Tank Capacity | |
| Fresh Water Tank (P & S) | : 2 x 6 m3 |
| Fuel Oil Tank (P & S) | : 2 x 10 m3 |
| Fuel Oil Tank (P & S) | : 2 x 33 m3 |
| Flash Point | : Above 60o C. |
