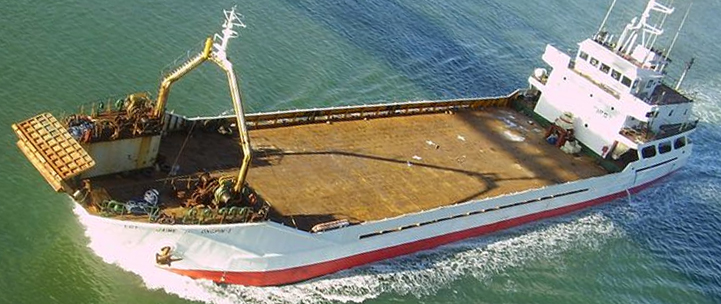

New Vessel Design: Landing Craft "Jaime V. Ongpin 1"
The Vessel Jaime V. Ongpin 1 is a shallow draft landing craft designed by GB Marine. Vessels like this landing craft are able to provide services to locations unnavigable by deeper draft vessels and barges, and hard to access areas.
| General Specifications | |
| Designer | : GB Marine |
| Vessel Type | : Landing Craft |
| Speed | : 8 Knots |
| Propulsion System | : Self Propelled Twin Screw |
| Principle Characteristics | |
| Length Overall | : 66.26 m |
| Length W. L. | : 62.70 m |
| Breadth Moulded | : 14.00 m |
| Depth Moulded | : 8.50 m |
| Complement | : 22 Persons |
| Deck and Mission Equipment | |
| Cargo Capacity | : 1000 MT |
| Cargo Deck Area | : 43 m x 13 m |
| Height of View Deck | : 7.6 m |
| Height of Bulwark | : 1.0 m |
| Bow Ramp Opening | : 5.6 m |
| Ramp Strength | : 2.5 MT / m2 |
| Vessel Fuel Capacity | : 100 MT |
| Vessel Water Capacity | : 100 MT |
| Cruising Range | : 4000 nautical miles |
