New Vessel Design: Pusher and Towing Tug "Tembaga I"

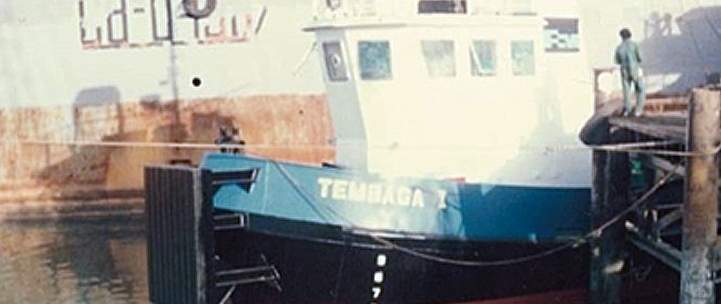

The vessel "Tembaga I" is an example of a 17m Pusher and Towing Tug design by GB Marine. This type of tug is designed to operate in rivers and inland waterways. Special design features of the tug include towing hook, push, and the ability to go up against high speed currents which are present in river estuaries for various operational reasons. The power can vary according to the intended service.
| General Specifications | |
| Designer | : GB Marine |
| Vessel Type | : Pusher and Towing Tug Boat |
| Speed | : Knots |
| Principle Characteristics | |
| Length Overall | : 17.00 m |
| Breadth Moulded | : 6.00 m |
| Depth Moulded | : 2.80 m |
| Draft | : 2.00 m |
| Complement | : 5 Persons |
| Decks and Mission Equipment | |
| Main Engine with Gearbox | : 632 PS @ 1800 RPM |
| Main Generator | : 15 KW. 440V/3Phase 60 Hz Twin Disc MG 530 |
| Deck Equipment Anchors | : 1 x 140 kg Stockless Bow Anchor |
| Towing Hook | : 15 Ton Towing Hook |
