Piping System Design

GB Marine’s piping system design expertise includes the conceptual and basic design layout and the selection of piping materials and components.

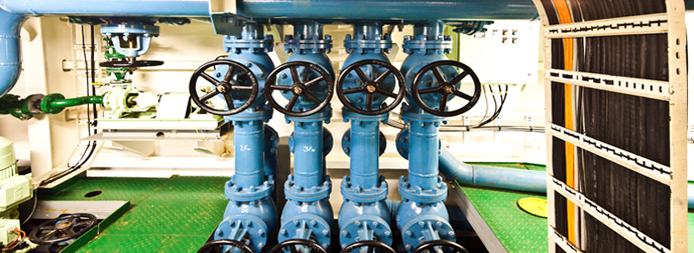

Image Caption: GB Marine can engineer the entire piping systems design of a vessel

Piping systems include sea-water cooling systems, fire-fighting system, bilge system, ballast system, fuel-oil systems, compressed air systems and other hydraulic systems.

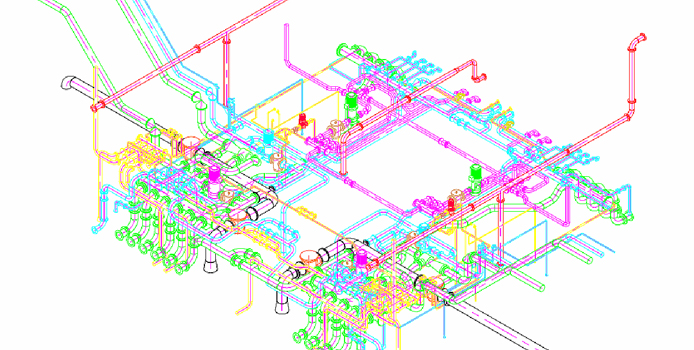

Image Caption: Piping Schematics - Isometric View
